Discrete Device-TO-247/247PLUS
General Description:
Voltage level: 1200V/750V
Current level: 140A/200A/275A
Circuit topology: 1 unit
Micro groove gate/field termination technology
Low saturation pressure drop
Low switching loss
high reliability
High RBSOA capability
High short-circuit tolerance
Applications:
UPS
Welding machine
DC/DC converter
motor drive
New energy vehicles

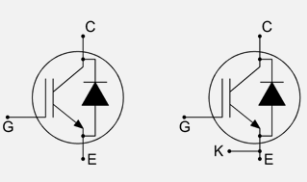

Circuit Diagram: Single switch | Specification | RedPower Part No. | Housing | Chip Technology | V CES(V) | I c(nom)(A) | VCE(sat)(V) | Size No. |
| TGQ200M08T | Q | Trench | 750 V | 200 A | 1.35 | 1 | |
TGQ140H12T | Q | Trench | 1200 V | 140 A | 1.90 | 1 | ||
TGY140H12T | Y | Trench | 1200 V | 140 A | 1.90 | 2 |
