Automotive IGBT module-A6
Product Overview/General Description:
Voltage level: 750V/1200V
Current level: 400A/450A/550A/600A/660A/820A/950A
Circuit topology: three-phase full bridge
Micro groove gate/field termination technology
Low saturation pressure drop
Low switching loss
high reliability
High RBSOA capability
Applications:
New energy vehicles

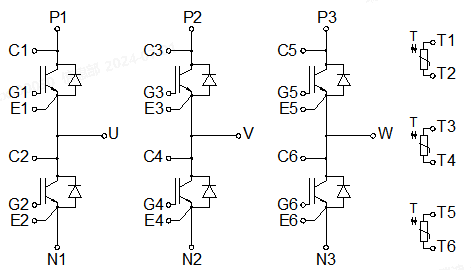

Circuit Diagram: Full Bridge | Specification | RedPower Part No. | Housing | Chip Technology | V CES(V) | I c(nom)(A) | VCE(sat)(V) | Size No. |
|
| RG400F08A6M7R | A6 | MPT-FS | 750 V | 400 A | 1.35 | 1 |
| RG550F08A6M7R | A6 | MPT-FS | 750 V | 550 A | 1.35 | 1 | |
| RG600F08A6M7R | A6 | MPT-FS | 750 V | 600 A | 1.35 | 1 | |
|
| A6 | MPT-FS | 750 V | 600 A | 1.35 | 2 | |
| RG820F08A6M7R | A6 | MPT-FS | 750 V | 820 A | 1.35 | 1 | |
| RG820F08A6M7R_L | A6 | MPT-FS | 750 V | 820 A | 1.35 | 2 | |
| RG820F08A6M7R_E | A6 | MPT-FS | 750 V | 820 A | 1.35 | 3 | |
| RG950F08A6M7R | A6 | MPT-FS | 750 V | 950 A | 1.35 | 1 | |
| RG950F08A6M7R_E | A6 | MPT-FS | 750 V | 950 A | 1.35 | 3 | |
| RG450F12A6M7RY_E | A6 | MPT-FS | 1200 V | 450 A | 1.35 | 1 | |
| RG600F12A6M7R | A6 | MPT-FS | 1200 V | 600 A | 1.35 | 1 | |
| RG600F12A6M7R_E | A6 | MPT-FS | 1200 V | 600 A | 1.35 | 3 |
